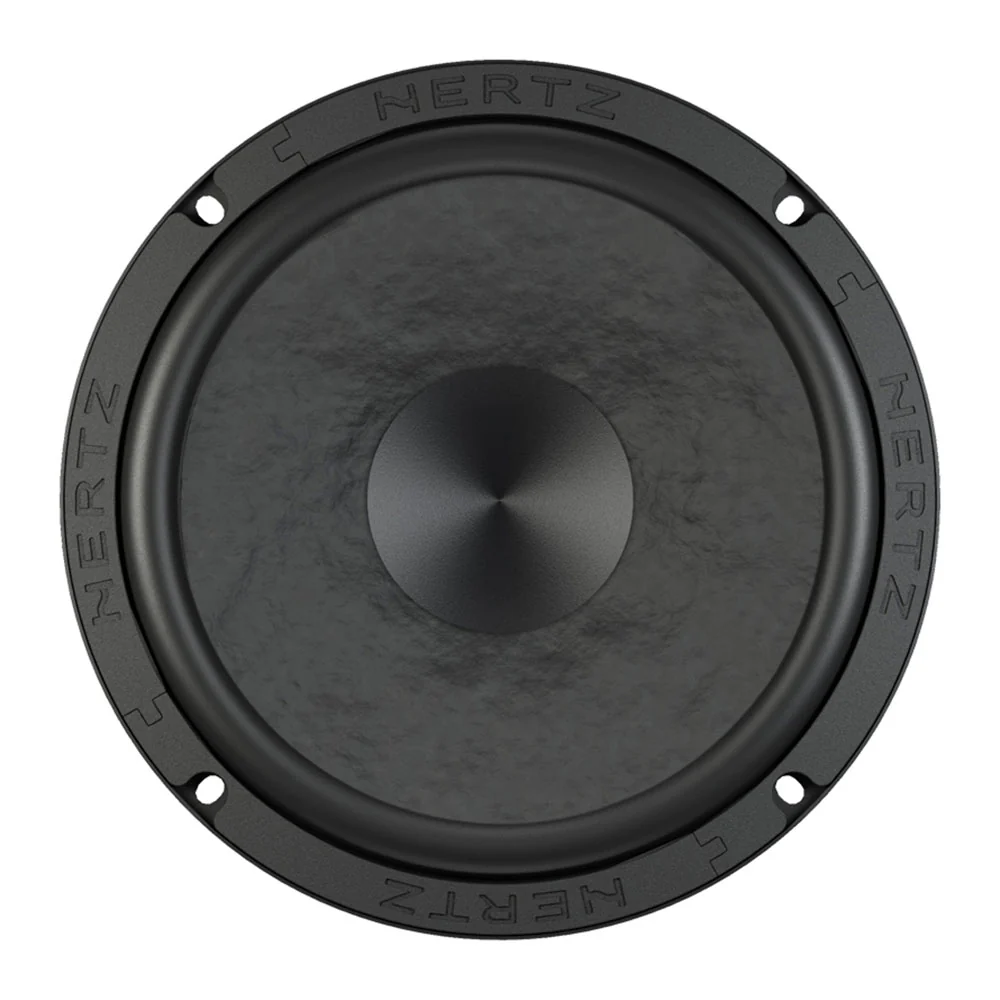

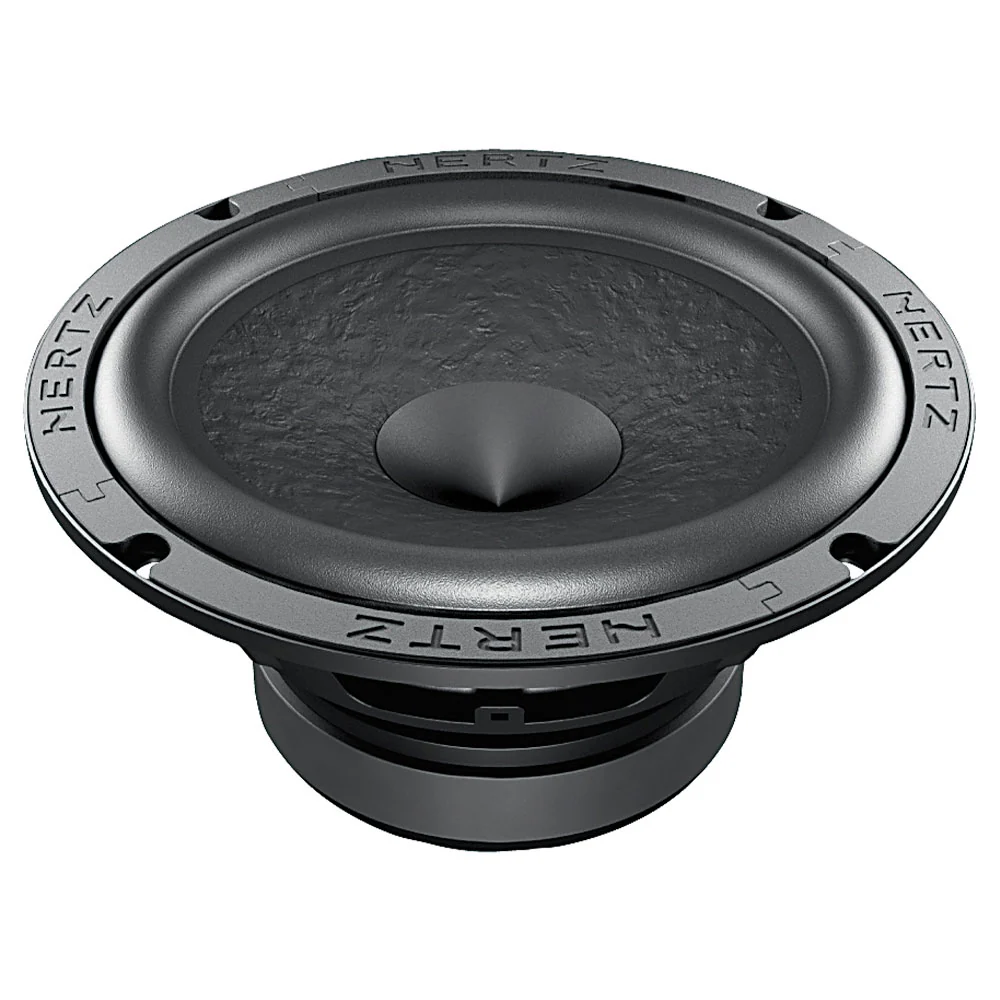

SV 200L SPL Woofer

The Hertz SV 200L car audio woofers was designed to offer superior performance in terms of both thermal and mechanical capability. The target has been fully hit since the woofer features a pure copper voice coil wound on KSV former, an oversized magnet and a vented bottom plate. The SV 200L employs the proprietary V-cone technology with the cone constructed from pulp with cotton fibre as well as Lossless Polymer Rubber Surround, offering a powerful low frequency response as well as the best off-axis dispersion.

Technical Specs
Component	SPL Woofer
Size mm (in.)	200 (8)
Power Handling - Continuous W	250
Power Handling - Peak W	500
Impedance Ohm	4
Voice Coil Ø	50 (2)
Frequency Response Hz	45 ÷ 4,5k
Magnet size D x d x h mm (in.)	120 x 60 x 20 (4.7 x 2.4 x 0.8)
Weight of one speaker kg (lb.)	2,32 (5.1)
Magnet	High density flux ferrite
Cone	Ultra light, non pressed paper

Electro-acoustic Specs
D mm	168
Re Ohm	3
Fs Hz	44
Le mH	0,75
Vas I	29
Mms g	31,5
Cms mm/N	0,42
BL T*m	8,6
Qts	0,33
Qes	0,36
Qms	3,32
Spl dB	94,5
