Kenwood Excelon XM160-2-98 Class D 2 Channel Amplifier for 1998-2013 Harley-Davidson® Touring Motorcycles

• Class D 2-Channel Power Amplifier
• 80W x 2 @ 2 ohms (RMS)
• No Radio Flash Required
• Bypass Port For System Expansion

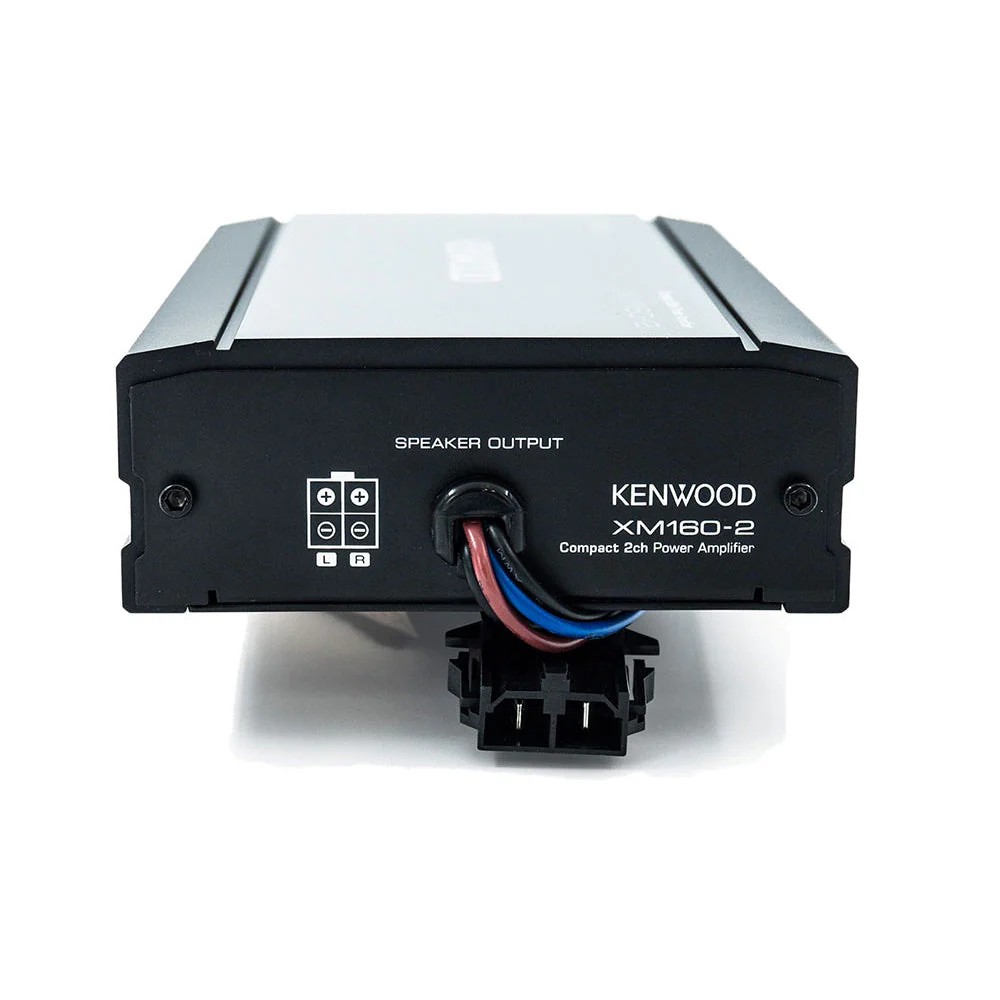

• Plug & Play Power, Speaker, & Input Wiring
• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
• Input Sensitivity Adjustment
• High Efficiency Design Will Not Overload HD Electrical Systems
• 2-Year Warranty

No Radio Flash Required

This amplifier is tuned for the best performance with a stock Harley Davidson® or aftermarket radio.

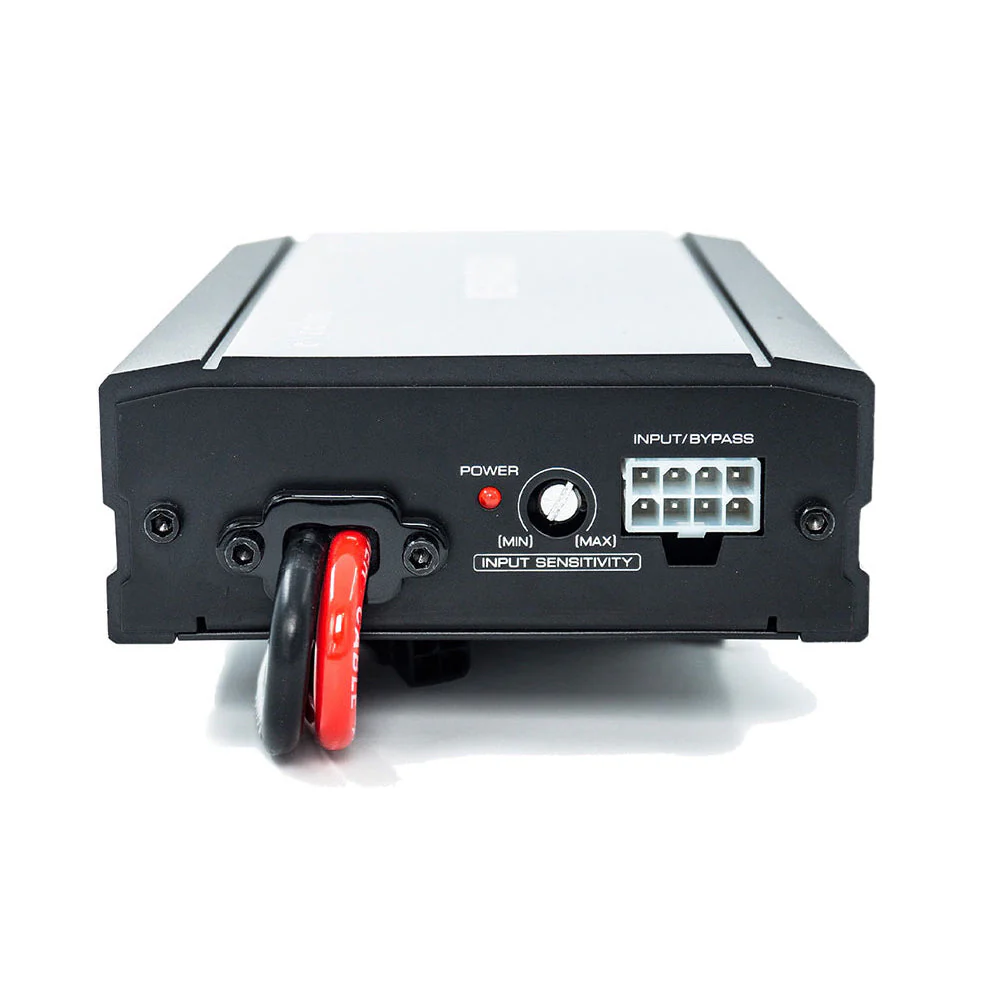

Input Sensitivity Setting

The input sensitivity adjustment exists to be able to properly level match an aftermarket receiver’s output if the OEM Harley Davidson® radio has been replaced (otherwise, we would have just removed and pre-set it!).

With an OEM Harley Davidson® radio, the input sensitivity should be set at just past the halfway point for optimal sound as shown in the picture above.

**Note** With this setting, the OEM Harley Davidson® radio can be turned up to 3 “clicks” from its max volume before the radio begins to distort.

Bypass Port For System Expansion

Easily add additional amplifiers by connecting to the input/bypass harness.

Built-in Voltage Monitoring Circuit

Automatically turns off the amplifier when the battery voltage drops below 10.5V
