$679.99

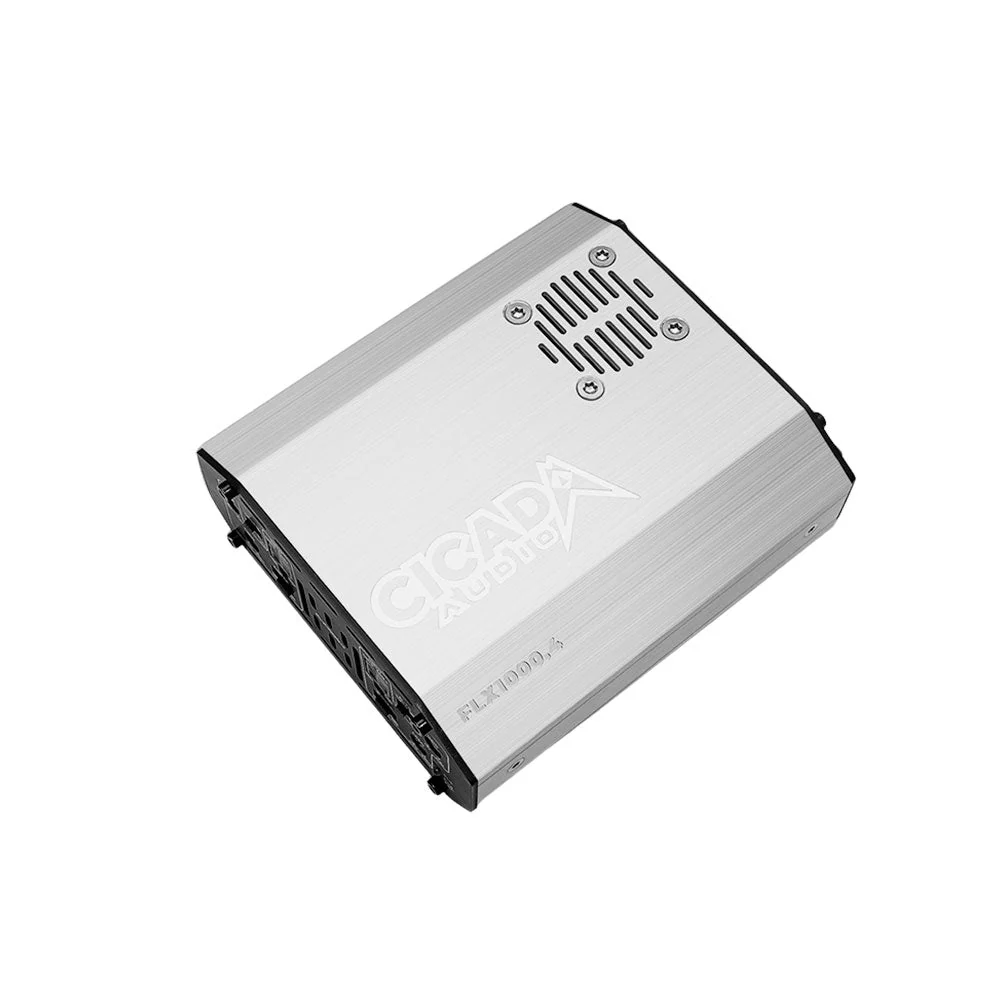

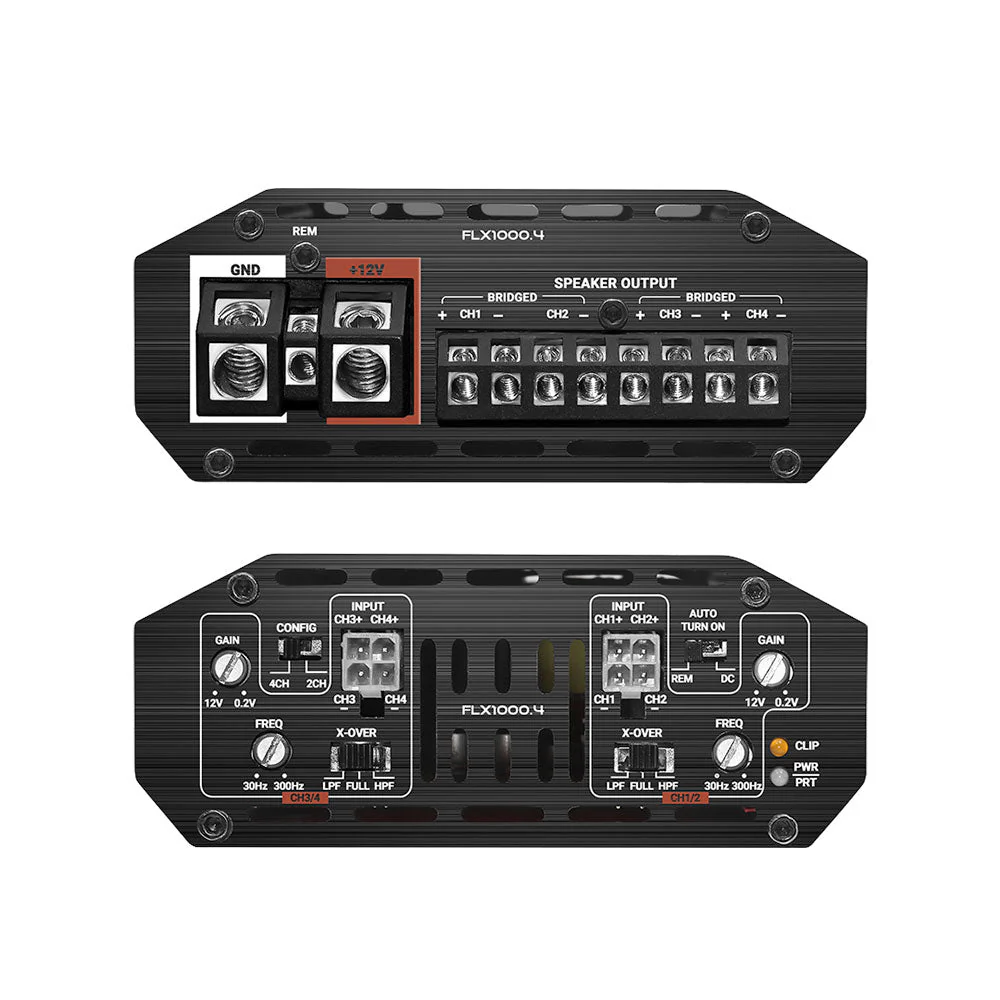

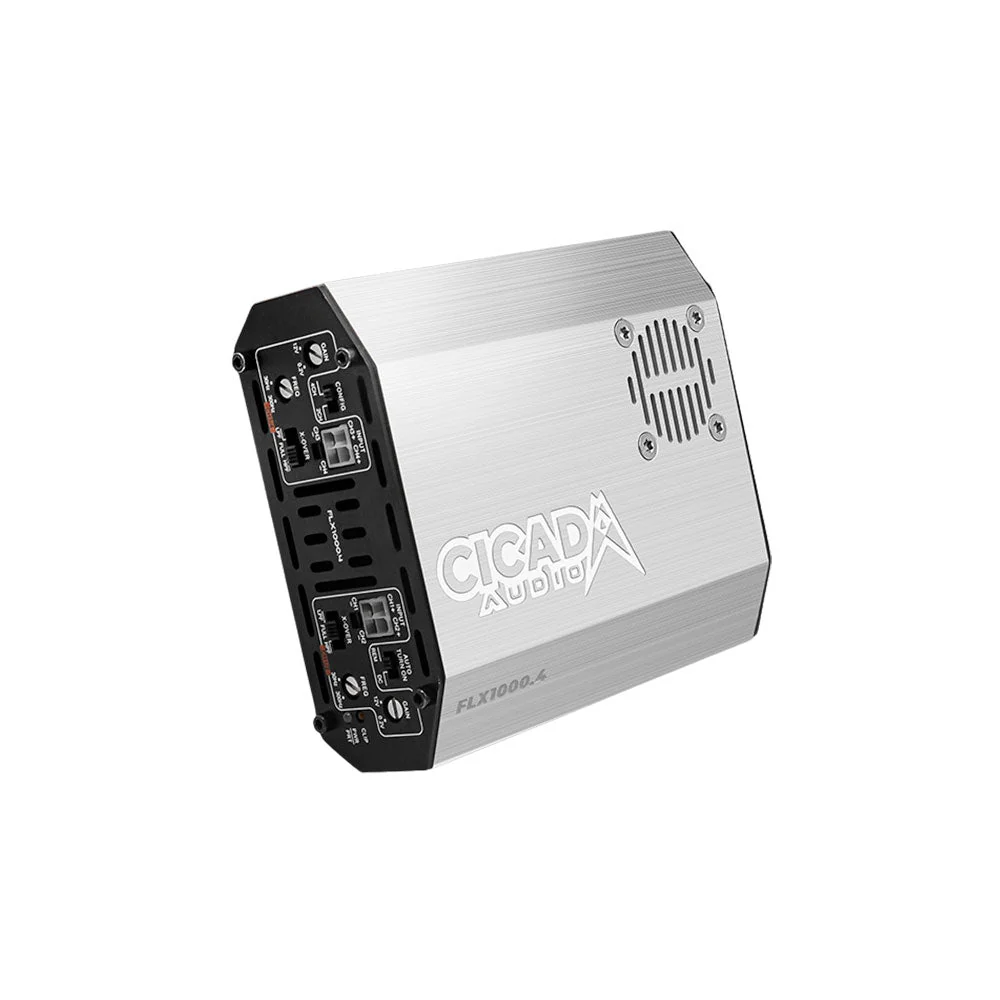

Cicada Audio FLX1000.4 250w x 4CH Pro Amplifier for Harley Davidson® Motorcycles ( FLX10004 )—
$679.99
The Story
4 CHANNEL POWER AMPLIFIER
- 4 X 150 WRMS into 4 ohms @ 12.5 Vdc
- 4 X 168 WRMS into 4 ohms @ 14.4 Vdc
- 4 X 220 WRMS into 2 ohms @ 12.5 Vdc
- 4 X 254 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
- 2 X 461 WRMS into 4 ohms @ 12.5 Vdc
- 2 X 530 WRMS into 4 ohms @ 14.4 Vdc
- Frequency response – 20-20,000 +/- 3dB THD < 0.5%
- Operating Voltage: 8V – 16V
- Current Draw (Music): 60 A
- Current Draw (Max): 116 A
- Recommended Fuse (Music): 120 A
- Total Efficiency: 79%
- Damping Factor: 200
- SNR: 91dB
- Crossover LPF/FULL/HPF: 30 TO 300Hz
- Slope:12dB per octave
- Gain: 0.2V – 12 Vac
- Turn-On Configuration: REM/DC
- THD + N (10% Rated Power): 0.1%
- Product Dimensions (Inches / Millimeters): 6.0 x 4.9 x 2.0 in / 152 x 124 x 51 mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
4 CHANNEL POWER AMPLIFIER
- 4 X 150 WRMS into 4 ohms @ 12.5 Vdc
- 4 X 168 WRMS into 4 ohms @ 14.4 Vdc
- 4 X 220 WRMS into 2 ohms @ 12.5 Vdc
- 4 X 254 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
- 2 X 461 WRMS into 4 ohms @ 12.5 Vdc
- 2 X 530 WRMS into 4 ohms @ 14.4 Vdc
- Frequency response – 20-20,000 +/- 3dB THD < 0.5%
- Operating Voltage: 8V – 16V
- Current Draw (Music): 60 A
- Current Draw (Max): 116 A
- Recommended Fuse (Music): 120 A
- Total Efficiency: 79%
- Damping Factor: 200
- SNR: 91dB
- Crossover LPF/FULL/HPF: 30 TO 300Hz
- Slope:12dB per octave
- Gain: 0.2V – 12 Vac
- Turn-On Configuration: REM/DC
- THD + N (10% Rated Power): 0.1%
- Product Dimensions (Inches / Millimeters): 6.0 x 4.9 x 2.0 in / 152 x 124 x 51 mm
