-65%Hertz SP1.900 1000W RMS Advanced D Class Mono Power Amplifier Only ( SP1 900 )—
$549.99
$192.50The Story

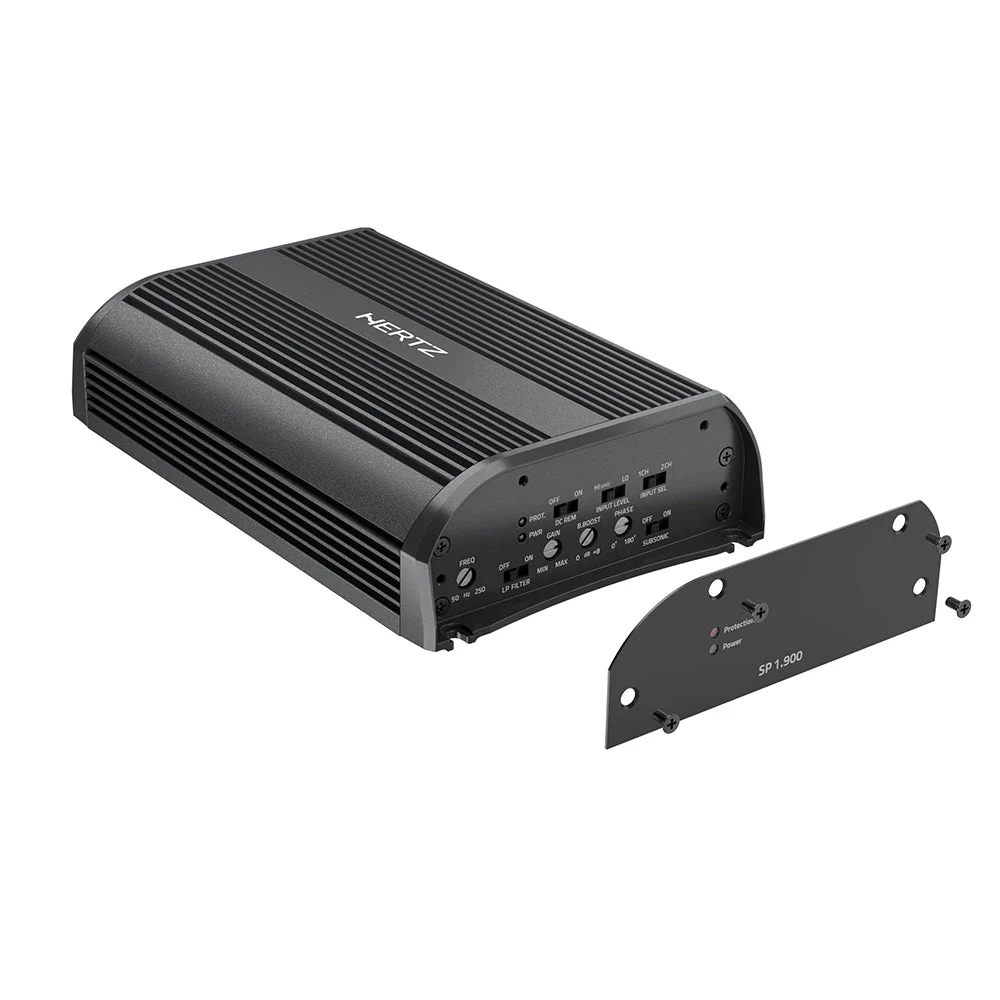

Hertz SP1.900 mono amplifier
The new Hertz SP 1.900 mono amplifier features ADC (Advanced D-Class) output stage, reaching up to 87% efficiency and delivering an impressive power rating of 1000 W RMS (1Ω), with an ultra-compact size of 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch). Being ultra-compact with impressive power, SP 1.900 is the ideal choice for Motorcycle applications under-seat in sports cars and behind-seat installations in trucks.
- Up to 87% efficiency thanks to ADC (Advanced D-Class) 1Ω stable output stage ensuring high audio performance in a compact size.
- USS (Universal Speakers Simulators) allows SP 1.900 to work with head units featuring the “speaker load detection” circuit.
- 1000 W RMS (1Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch).
- IP55 aluminum chassis for maximum protection against humidity and external agents.
- There is no cooling fan to prevent internal accumulation of dirt.
- Sealed power cord, line inputs, and speaker outputs to prevent oxidation.

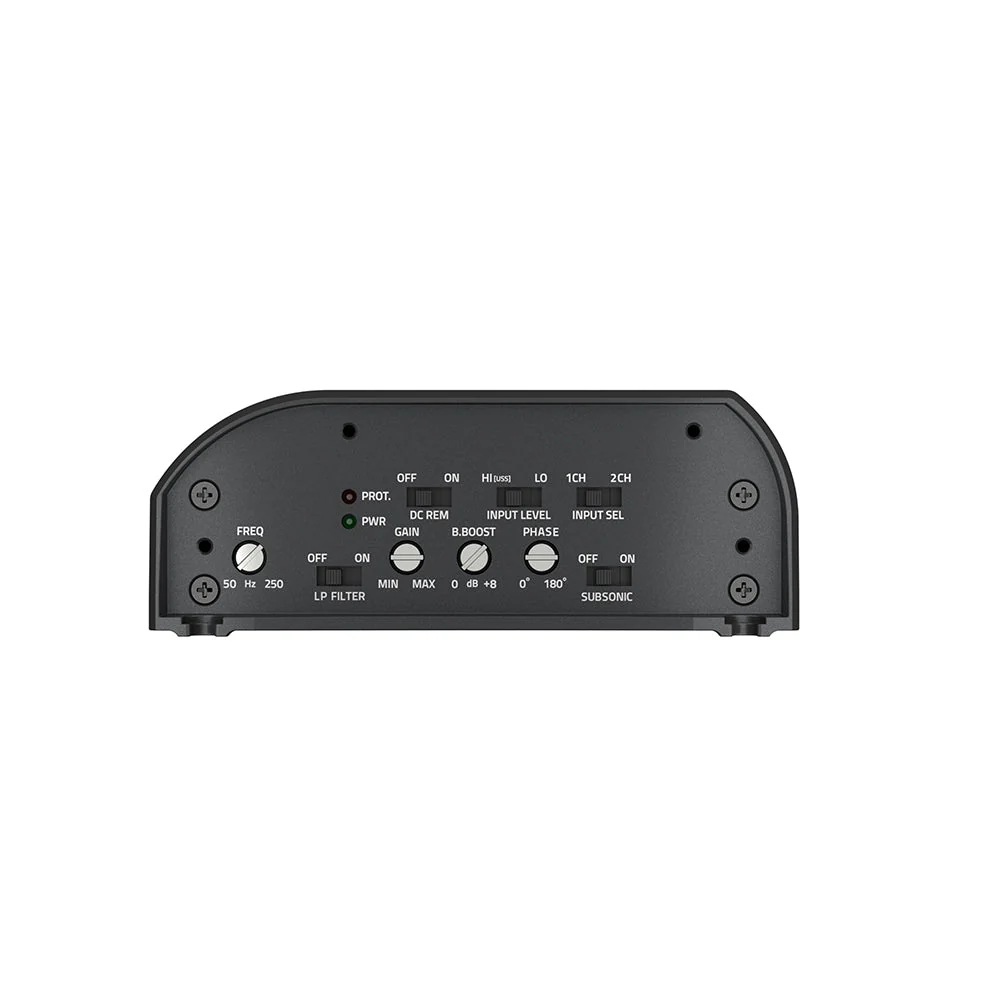

- Crossover filters and controls on a single side to facilitate calibration when the product is installed.
- Balanced fully differential high-noise rejection inputs.
- ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled).
- 24 dB continuous adjustable (50 to 250 Hz) Lo-Pass subwoofer filter.
- SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signals to avoid damage to the subwoofer.
- The optional HRC BM Remote Volume Control provides the ability to adjust the subwoofer volume level from the dashboard.
General Specs
| Channels | 1 |
| Nominal power supply voltage | 11 ÷ 15 VDC |
| Pulse Operating voltage | 6 ÷ 16 VDC |
| Idling current | 1.1 A |
| Idling current when off | 0.03 mA |
| Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) | 50 A |
| Remote IN | 6 ÷ 15 VDC (9 mA) |
| DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers | 3.5 ÷ 7 VDC |
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.1% |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | >300 |
| Bandwidth @ -3 dB | 5 Hz ÷ 500 Hz |
| S/N ratio (A weighted @ 1 V Input) | 95 dBA |
| Pre-In sensitivity | 0.6 ÷ 6 VRMS |
| Speaker-In sensitivity | 2.2 ÷ 22 VRMS |
| Minimum load impedance: | 1Ω |
| IP Rating | IP55 |
| Operating Temperature Range | 0°C (32°F) to 55°C (131°F) |
| Weight (kg/lbs) | 2.15 / 4.74 |
| Adjustable Crossovers | yes |
Output Power
| Output Nominal Power (RMS) @ 14.4 VDC, THD 1%: | |
| 1 Ch: | 600 W (4Ω) |
| 1 Ch: | 1000 W (2Ω) |
| 1 Ch: | 1000 W (1Ω) |
| Total Power | 1000 W |
INPUTS / FILTERS
| INPUTS: | Pre IN / Speaker IN |
| Full | Yes |
| Lo-pass: | 50 ÷ 250 Hz @ 24 dB/Oct. |
| Bass Boost 45Hz (adjustable) | (0 ÷ 8) dB |
| Phase (adjustable) | 0 ÷ 180° |
| Subsonic | 25 Hz @ 24 dB/Oct. |
| Remote Volume Control (not included) | -21 + 5 dB |
Physical Specs
| mm | in | |
| A | 205 | 8.07 |
| B | 211.6 | 8.33 |
| C | 107 | 4.21 |
| D | 130 | 5.12 |
| E | 49 | 1.93 |
