The Story
Speaker Features

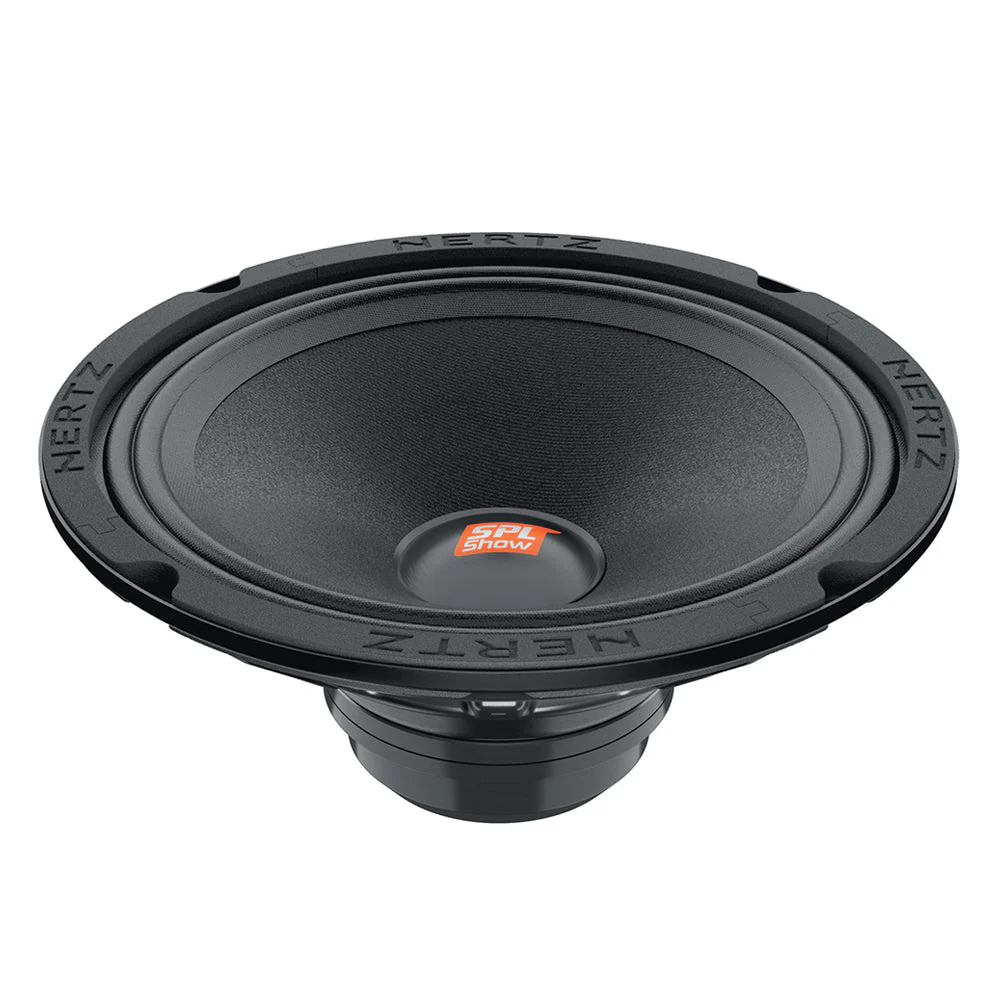

SV 200 NEO SPL MIDRANGE
New SV 200 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Hertz SV200NEO Midrange | |||||
| GENERAL | |||||
| Speaker Design | Midrange | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 500W | ||||
| Continuous Power (RMS) | 200W | ||||
| Sensitivity | 100 dB SPL | ||||
| Effective Frequency Range | 100 ÷ 8k Hz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 7-1/4 (184.15 mm) | ||||
| Top Mount Depth | 3-1/4 | ||||
| Bottom Mount Depth | 3-5/8 | ||||
| Grille | No | ||||
| Warranty | 1 Year | ||||
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Speaker Features
SV 200 NEO SPL MIDRANGE
New SV 200 NEO features compact dimensions and light weight preserving excellent performance thanks to the use of Neodymium N38 H for the motor units. To allow a safe outdoor use without discoloration over time, cones has waterproofing and anti-UV treatment and motor units is painted with cataphoresis with insulated lead-wires to avoid oxidation. The terminals and mounting holes are compatible for installation on Harley-Davidson motorbikes!
Speaker Specifications
| SPEAKER SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Hertz SV200NEO Midrange | |||||
| GENERAL | |||||
| Speaker Design | Midrange | ||||
| DC Resistance (Ω) | 4 Ohm (Ω) | ||||
| Peak Power (Watts) | 500W | ||||
| Continuous Power (RMS) | 200W | ||||
| Sensitivity | 100 dB SPL | ||||
| Effective Frequency Range | 100 ÷ 8k Hz | ||||
| MOUNTING INFORMATION | |||||
| Mounting Hole Diameter | 7-1/4 (184.15 mm) | ||||
| Top Mount Depth | 3-1/4 | ||||
| Bottom Mount Depth | 3-5/8 | ||||
| Grille | No | ||||
| Warranty | 1 Year | ||||
